Robots/Humanoid/EngineAI/PM01

PM01

LIMITED
EngineAI logoEngineAI

Compact open-source humanoid with 24 DoF, 320° waist rotation, and Jetson Orin dev stack at a sub-$16k China list price.

01
PM01
Unit ID
PM1-2026-001
Form
Humanoid
Height
138 cm
Weight
40 kg
Key Specs
Height
138 cmi
Weight
40 kgi
Battery
2 h
Speed
>2 m/s
Payload
TBAi
DOF
24

About PM01

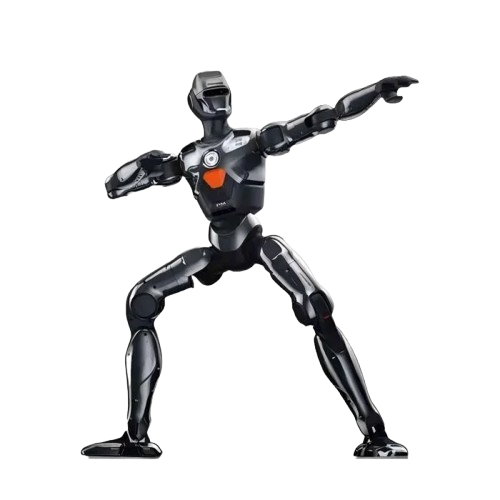

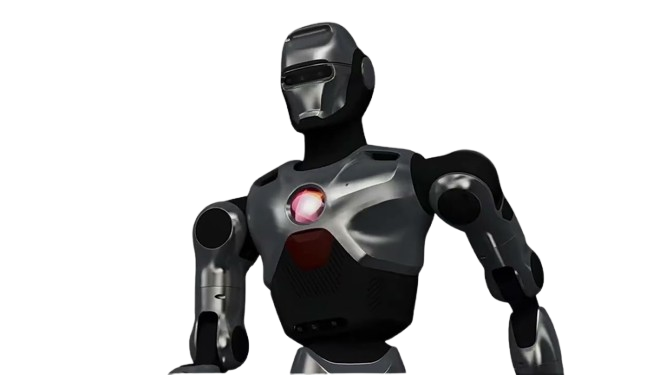

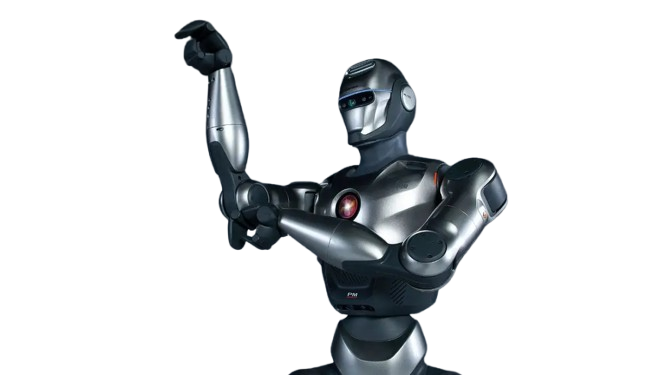

PM01 is EngineAI's lightweight humanoid platform for research, education, and early commercial demos. It stands about 138 cm tall, weighs roughly 40 kg, and walks at up to 2 m/s with a distinctive 320° waist joint. Education builds pair an Intel N97 host with NVIDIA Jetson Orin NX, dual depth cameras, and a chest touch display for ROS and reinforcement-learning workflows.

EngineAI sells PM01 on its official site with open training and deployment code (ROS/ONNX, MuJoCo sim2sim, Isaac-based training). The education edition lists 24 degrees of freedom; the commercial trim drops secondary dev access and lists 23 DoF with a simpler 4-core CPU stack. A quick-swap 10,000 mAh pack targets about two hours of runtime per charge.

Launch coverage widely cited ¥88,000 (about $12,000) in China, undercutting Unitree G1 on paper. International resellers often quote higher bands (roughly $20k–26k). HomeBotRadar tracks PM01 for developers and early adopters cross-shopping affordable humanoids like Unitree G1 or Figure 02. It is a buyable dev platform, not a turnkey home chore robot.

HUMANOIDDEVELOPEROPEN SOURCE
